고저압 수배전반

Div.	LV Panel	HV Panel	EHV Panel
V. Range	AC 100V ~ 1,000V   (usually AC 220V, 380V, 440V, etc.)	AC 1,000V ~ 35,000V   (usually 3.3kV, 6.6kV, 22.9kV)	AC 35kV ~   (usually 66kV, 154kV, 345kV, etc.)
Features	Simple structure that can be operated    directly by human hands, including MCCB   circuit breakers, relays, etc., easy to install   and maintain	Including VCB, high-voltage fuse, protection   relay, etc., insulation and securing safety   distance are important (gas insulation, mold   insulation, etc.).  Access by the general    public is prohibited, only professional    technicians can operate	Capable of handling large amounts of power   Use of advanced equipment such as GIS   Requires very high insulation and safety   Requires advanced technology for mainten-   ance  and operation
Location	General building lighting, outlets, power    supply for small devices,   Used in apartments, commercial buildings,   small and medium-sized factories, etc.	Used in large buildings, factories, industrial    facilities, etc. Power supply for transformers   and large motors, etc.	Used in power plants, substations, and large   industrial complexes



Low-voltage distribution boards are electrical equipment that receive, distribute, and control power below 1,000 V, and mainly supply power to lighting, outlets, and small machines inside buildings. They are widely used in apartments, commercial buildings, offices, and small factories, and the equipment installed is mainly circuit breakers and relays that prevent over current and leakage current, and they are relatively easy to maintain.

  ◐  LVDP Exterior Appearance

Outdoor type LVDP	Indoor type LVDP

  ◐  Products Features of LVDP

Low-voltage switchboards supplied by we Seonjinhitech are equipped with proven pull-out air circuit breakers (ACB) and self-protection circuit breakers (MCCB). They are designed and manufactured in accordance with IEC and KEM standards, ensuring the best quality by applying devices with proven safety and durability through sufficient bus capacity, installing circuit breakers with excellent breaking performance and protective relays with appropriate protection elements. In addition, the compact design increases the utilization rate of electrical room area, and the two-stage and three-stage design reduces facility costs.

√  Improved stability and economy through appropriate circuit breaker placement

√  Customized design and manufacturing to meet various domestic and international standards and user specifications

√  Easy maintenance and modification of products

  ◐  Manufacturing Spec. of LVDP

  ◐  Configuration of LVDP

Low voltage switchboards (LV switchboards) are generally equipment that reduce voltages of 6.6kV or 22.9kV to distribute power below 600V,

and are mainly composed of the following basic circuits.

1)  Main Circuit

     Distributes the main power coming from the power source to each load, and includes circuit breakers (MCCBs), magnetic contactors (MCs),

     and relays.

2)  Branch Circuit

     A circuit that supplies power to individual loads (lighting, outlets, machines, etc.) and is protected by a miniature circuit breaker (MCB).

3)  Control Circuit

     Controls functions such as motor start, stop, and timer operation, and uses switches, relays, timers, and push buttons.

4)  Metering Circuit

      A circuit for measuring current, voltage, and power, and includes ammeters, voltmeters, wattmeters, CTs, PTs, etc.

5)  Earthing Circuit

     This is a grounding circuit to prevent leakage and electric shock accidents.

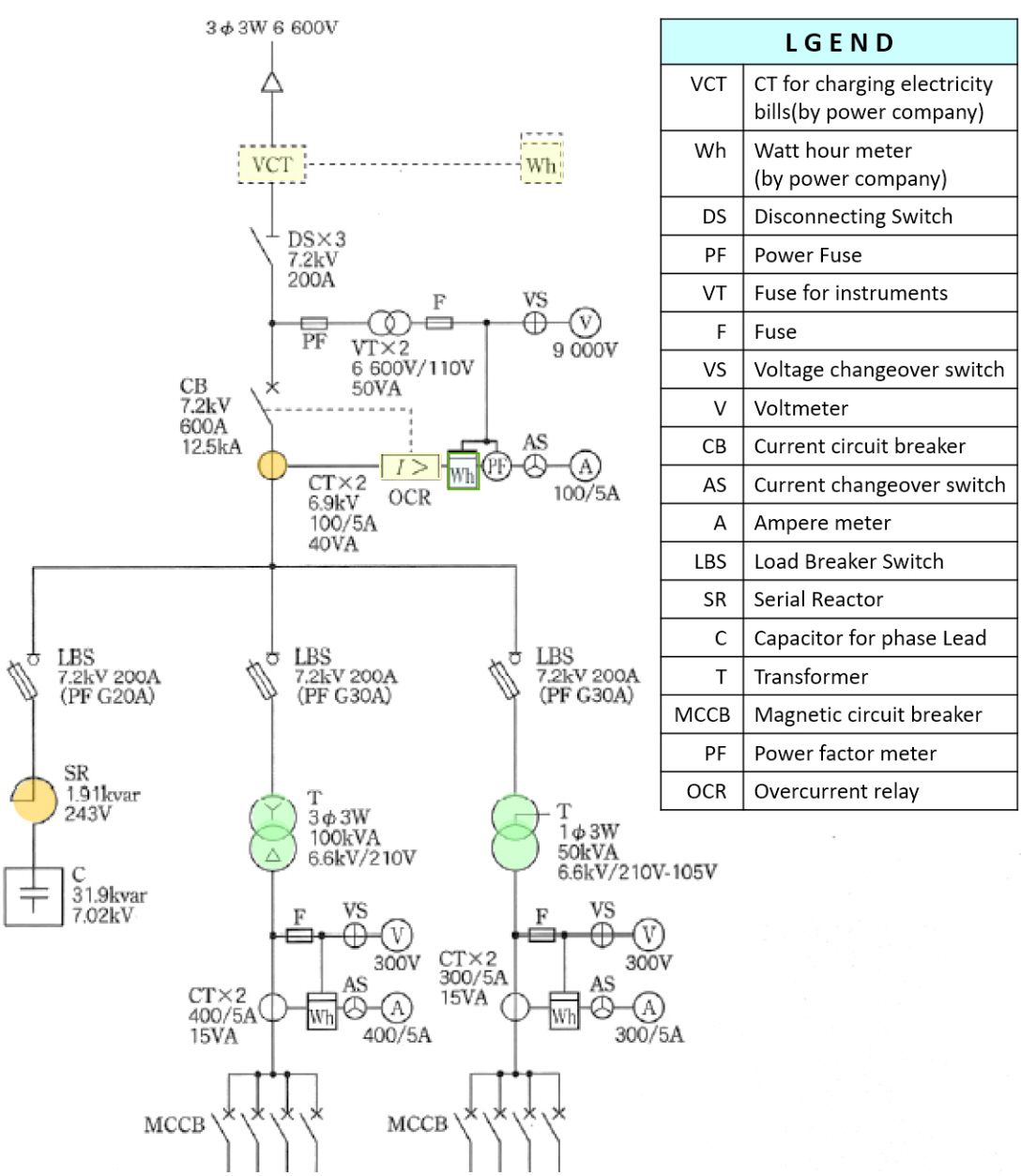

  ◎  Configuration of LVDP Standard Circuit

< Config. of LVDP  standard circuit >

  ◎  Configuration of LVDP ELD standard circuit

< Config. of LVDP ELD(earth leakage detector) standard circuit >

Local distribution Panel is a device that distributes power and plays an important role in the lower level of electrical facilities. It divides the electricity coming from the main power source into several circuits and supplies them to different loads. It is a useful device for safely distributing and managing power, as it generally includes circuit breakers, fuses, and measuring instruments. The distribution board is mainly used in commercial buildings or industrial sites, and it greatly helps to increase efficiency and stability in the operation of the electrical system.

  ◐  LDP Appearance

LDP type	Vertical type internal arrangement	Horizontal type internal arrangement

  ◐  LDP Products Features

The distribution board is designed to fit the purpose of the target facility, taking into account the conditions of the installation site, and is a product with a simple structure and excellent safety due to the standardization of each part.

√  Produced based on a standardized design according to the number of circuits, excellent cost-effectiveness

√  Excellent quality because it is manufactured only with parts proven in the market

√  High productivity through simple assembly in a standardized process

√  Easy maintenance due to simple structure

Customer Order model	Designed according to customer order requests,    the design is diverse and the product is economical.
Environmental     durability model	We provide a variety of models that can ensure    durability depending on the installation environment,   such as outdoor use, indoor use, dusty areas, and   high temperature and humidity areas.
Industrial Complex model	This model is suitable for crowded areas such as    large cities and agricultural and industrial complexes.

  ◐  Config. of LDP standard circuit

      < Config. of LDP standard Circuit >

MCC control panel (Motor Control Center) is a centralized motor control system for efficiently controlling and protecting multiple motors. Its main components include magnetic contactors (MC), thermal relays (OLR), circuit breakers (MCCB), and measuring instruments. It can independently start and stop each motor, and also performs fault detection and protection functions. MCC is widely used in multi-motor control systems such as industrial plants and large-scale facilities.

  ◐  MCC appearances

Multi-motor process MCC configuration	Multi-motor process MCC installed

  ◐  MCC Products Features

MCC is a device that controls the start/stop of an electric motor. The pull-out motor control panel can design, manufacture, and produce various control panels such as forward and reverse control according to the characteristics of the equipment or the customer's needs. It is designed with a standardized, modularized, and centralized structure, so it is not only easy to maintain and maintain, but also has an attractive appearance.



√  Excellent maintenance and inspection

√  Excellent additional expansion and modification of equipment

√  Convenient replacement of parts

  ◐  Selection of MCC Spec.

Rated Voltage		AC 690V
Control Power Voltage		AC 100V/110V, 200/220V
Rated Current	Horizontal  BUS	600 ~ 3000A
	Vertical  BUS	300 ~ 600A
Short time Rated Current  / 1s		25,  50,  65 kA
Cabinet	installation condition	Indoor type
	Geometry (mm)	W600 x D600 x H2350

  ◐  Standard Circuit of MCC Unit

< Standard circuit of MCC Unit >



**********************************************************************************************************************************************************************************
